Cartesian trajectories for the KUKA robots (KRC/KRL).

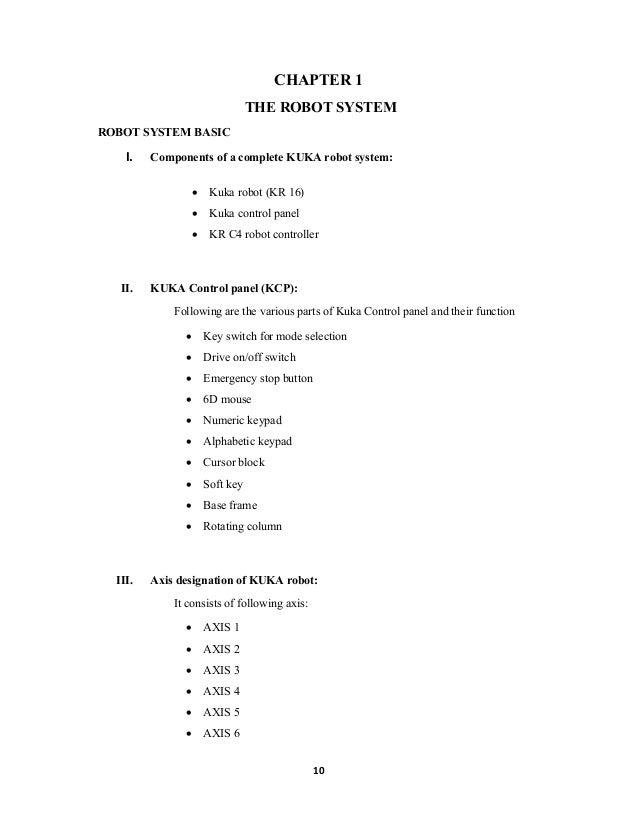

• Kuka Advanced Programming Manual Programming

For example, Fanuc robots use Karel, Yaskawa uses INFORM, Kuka has KRL (Kuka Robot Language), and ABB has its RAPID programming language. The list goes on. Some general-purpose programming framework — such as ROS Industrial — are starting to offer standardized options. However, technicians are still likely to use the proprietary language. Kuka Expert Programming Manual PDF: Kuka Expert Programming Manual Doc: Kuka Expert Programming Manual ePub: Kuka Expert Programming Manual If searched for the book Kuka expert programming manual in pdf form, then you have come on to faithful website. We presented utter variant of this ebook in ePub, doc, DjVu, txt, PDF formats.

Further reading

Trajectory composition¶

Cartesian trajectories can be composed in three ways (see manual_slides p. 23-32).:

• Linear Cartesian motions

  LIN

• Circular motions

  CIRC

• Joint space interpolation

  PTP

  • joint space movement to a given goal, which can be specified in joint space or in Cartesian space.

  • controller calculates the necessary angle differences for each axis

  • Preferred motion if a high TCP speed is wanted and the interpolation between both waypoints doesn’t have to follow a predefined path.

• Additional

  SLIN

  • The Spline Linear motion uses splines between linear motions

  SCIRC

  • The Spline Circular motion uses splines between circular motions

  SPTP

  • The Spline Point to Point motion is similar to PTP but it allows continuous spline motions.

Waypoint representation¶

(see kuka_system_software and manual_slides)

• Angles of rotation of the robot coordinate systems
• S and T specify a robot’s position unambiguously if more than one axis position is possible forthe same point in space (because of kinematic singularities). This is often written in integerform, thus the values above.
  • S (status): 3-bit binary value describing the robot’s configuration with predefined criteria
  • T (turn): direction of a turn.6-bit binary value, containing flip bits for each axis (0 when axis >= 0 deg, 1 when axis < 0deg)

Trajectory parameterization and execution¶

(see manual_advanced)

Specification of velocity¶

• Speed of TCP can be set within a move instructions in % by the ‘vel’ argument.

• For Continuous path motions ([LIN], [CIRC]) the velocity is constant from start to end.

• Realtive Joint Velocity can be set by: setJointVelocityRel(0.3)

• KUKA operation mode influence velocity

  Mode	description	velocity
  T1	Manual Reduced Velocity	max of 250mm/s
  T2	Manual High Velocity	as programmed
  AUT	Automatic	as programmed
  EXT	Automatic external	as programmed
  CPR	Safe Operation	max of 250mm/s

specification of acceleration¶

Relative Joint Acceleration can be set by: setJointAccelerationRel(0.5)

Blending¶

(source Angerer and Vistein)

• Blending is enabled by the advance run mechanism enabling planning the next motion while executing a motion.

• To activate blending a motion needs to be marked as blendable by adding a keyword to the motion instruction. C PTP`for PTP motions and `C_DIS, C_VEL or C_ORI for motions in operation space.

• Blending between all motion types is supported. It is even possible to blend a PTP (joint space) into a LIN (Cartesian space) and vice versa.

• Blending can be done by defining a blend radius

  • as a relative value: IMotion.setBlendingRel(0.2)
  • in millimeters: IMotion.setBlendingCart(20)

Parallel IO operations¶

No information found so far

Online (real-time) trajectory modifications¶

Robot Sensor Interface (RSI) (see RobotSensorInterface)

Kuka Advanced Programming Manual Programming

• supported since KRC-4 controller
• influence the position of the robot by external sensors.
• robot position can be influenced by external sensors through overlaying a programmed motion with external control, like position correction from a sensor-based system
• default 4 ms cycle time for accepting set point, hence external controller requires hard real-time
• usually correction data is provided in relative values and applied directly to the running program. However, as absolute values are possible, the robot can be controlled externally while a KRL program only providing a fixed start position runs in the background.
• communication between KUKA and external controller via UDP/IP on a dedicated network segment
• RSI context is a library with RSI objects for configuration of the signal flow
• RSI monitor offers online a visualization of the RSI signals.
